Unmatched 4-channel Natural Light in a 2-inch adjustable downlight with exacting aim control for new construction projects.

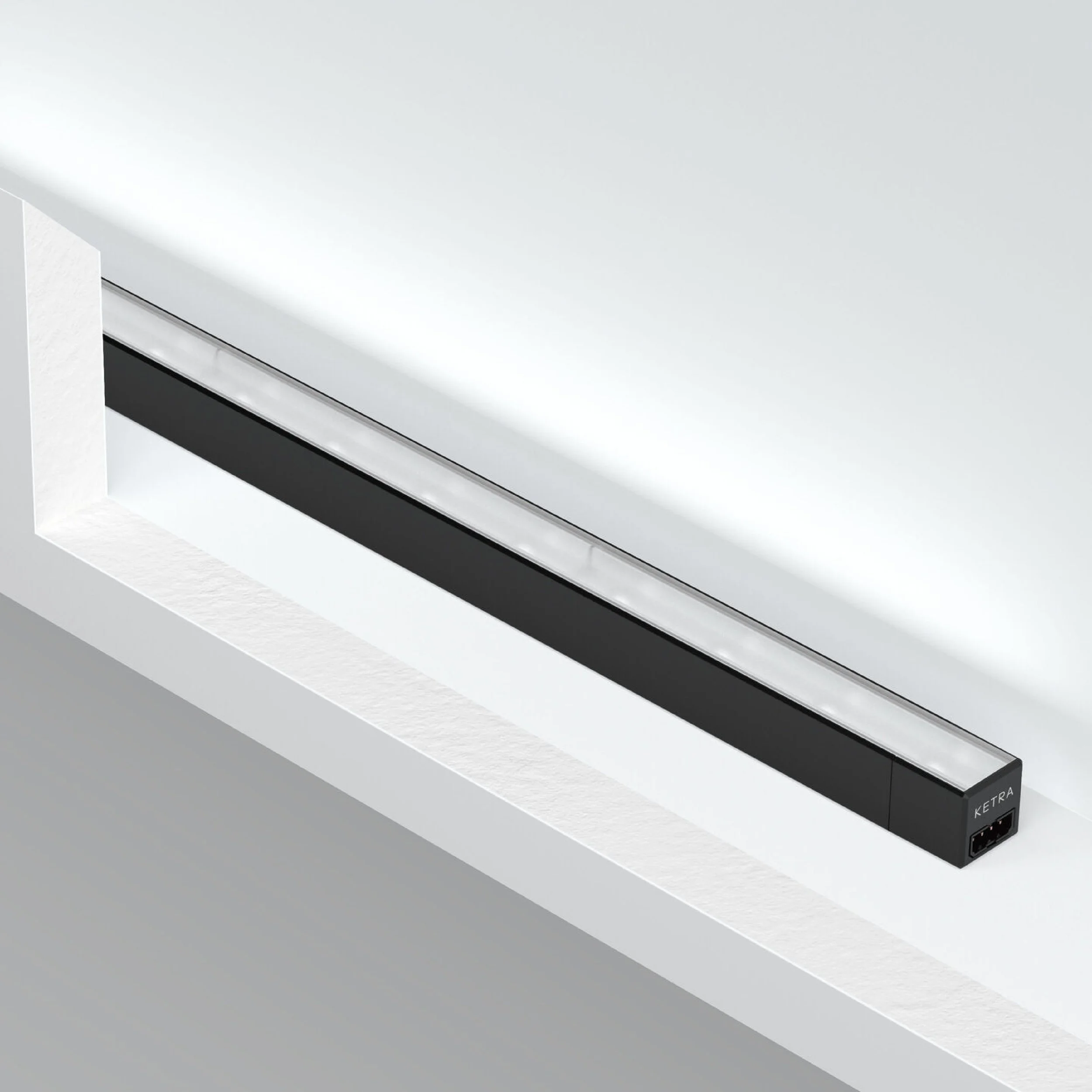

Unmatched 4-channel Natural Light in a low-profile linear fixture with extended 24-foot run capability for under-cabinet and accent lighting applications.

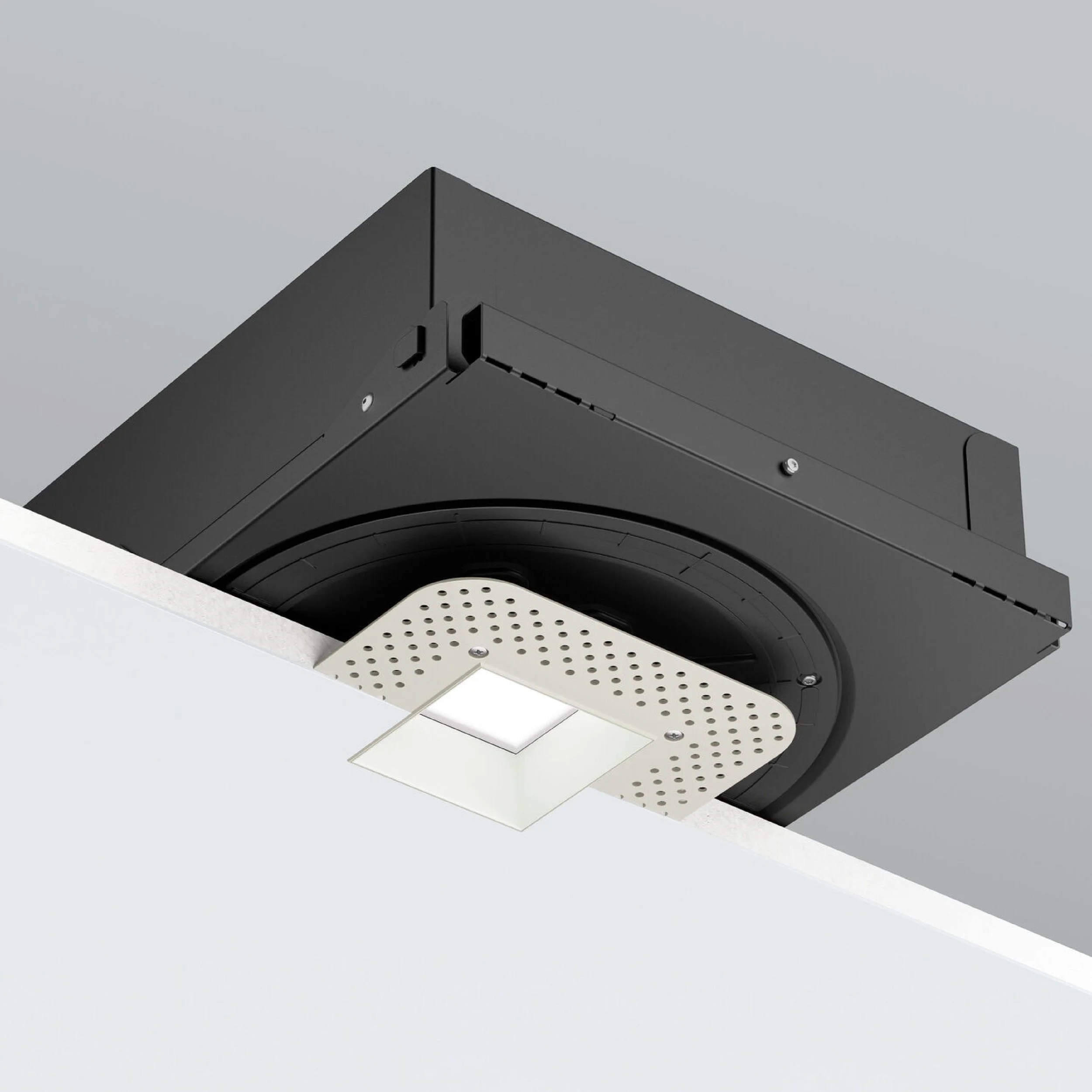

Exceptional 3-channel Natural Light in a 2-inch adjustable downlight for new construction projects.

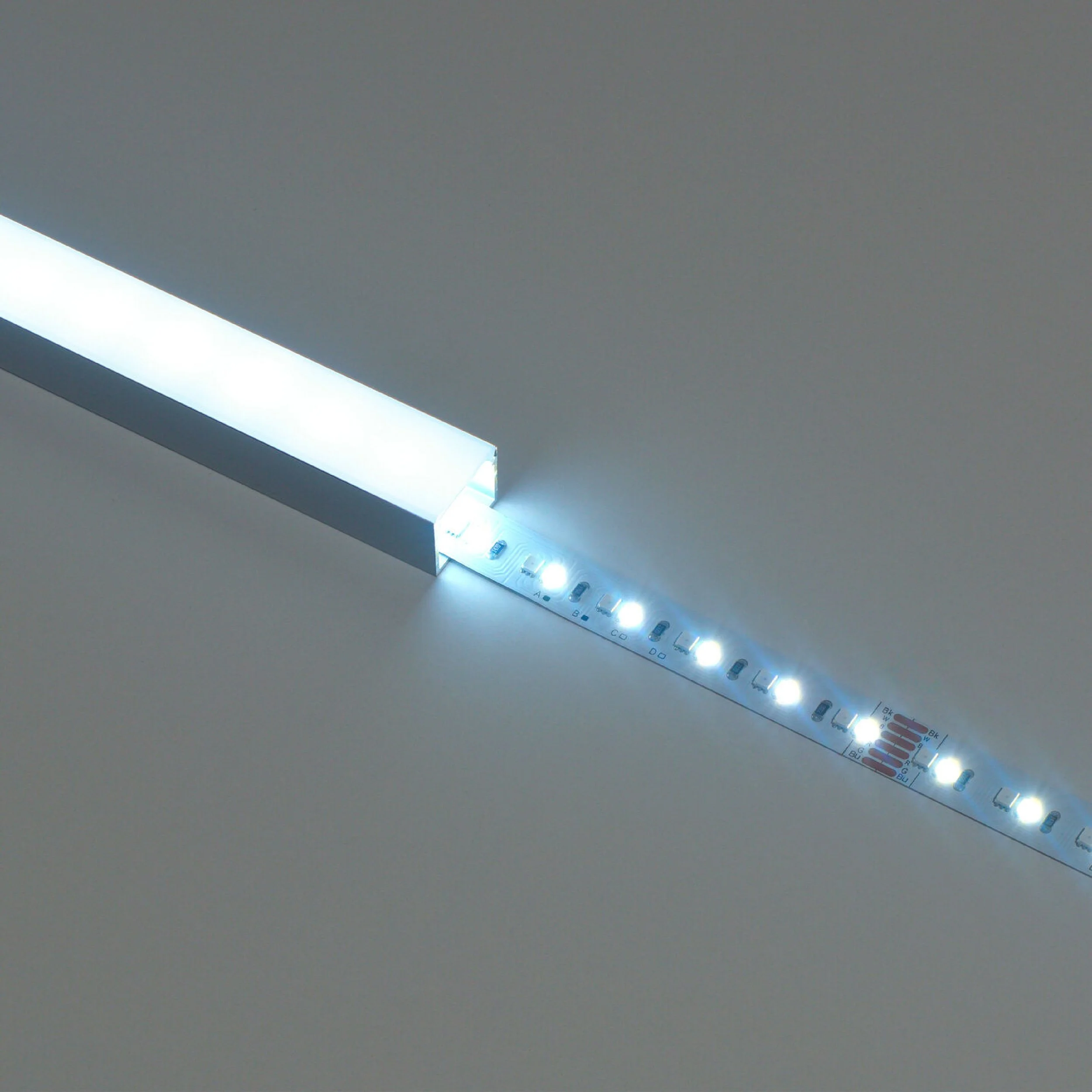

Full-spectrum RGB color and tunable white in a 5-channel LED tape light for dynamic accent lighting that transforms spaces with both vibrant color and precision-tuned white light.

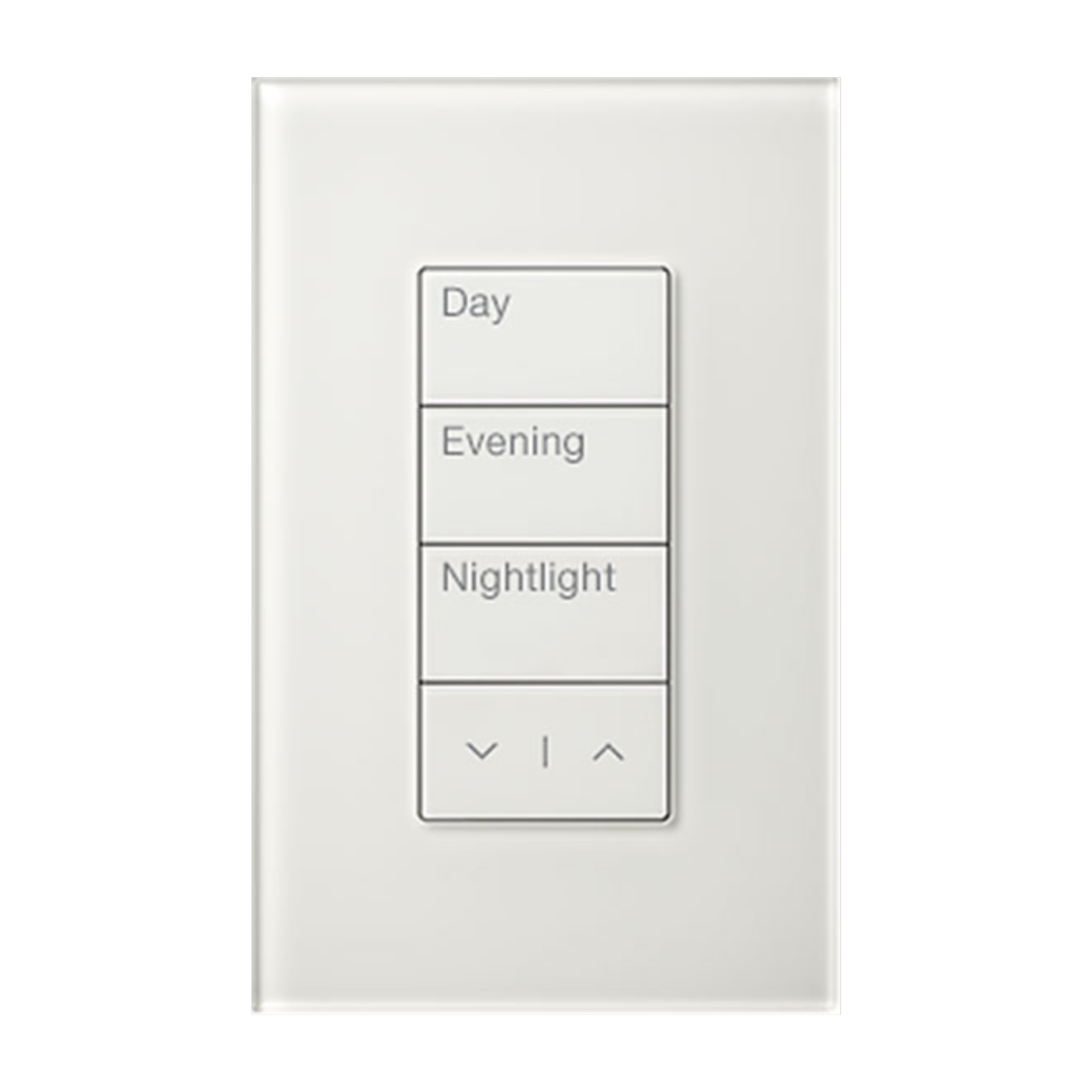

Rational luxury. Clean, precision-crafted lines redefine the architectural keypad.

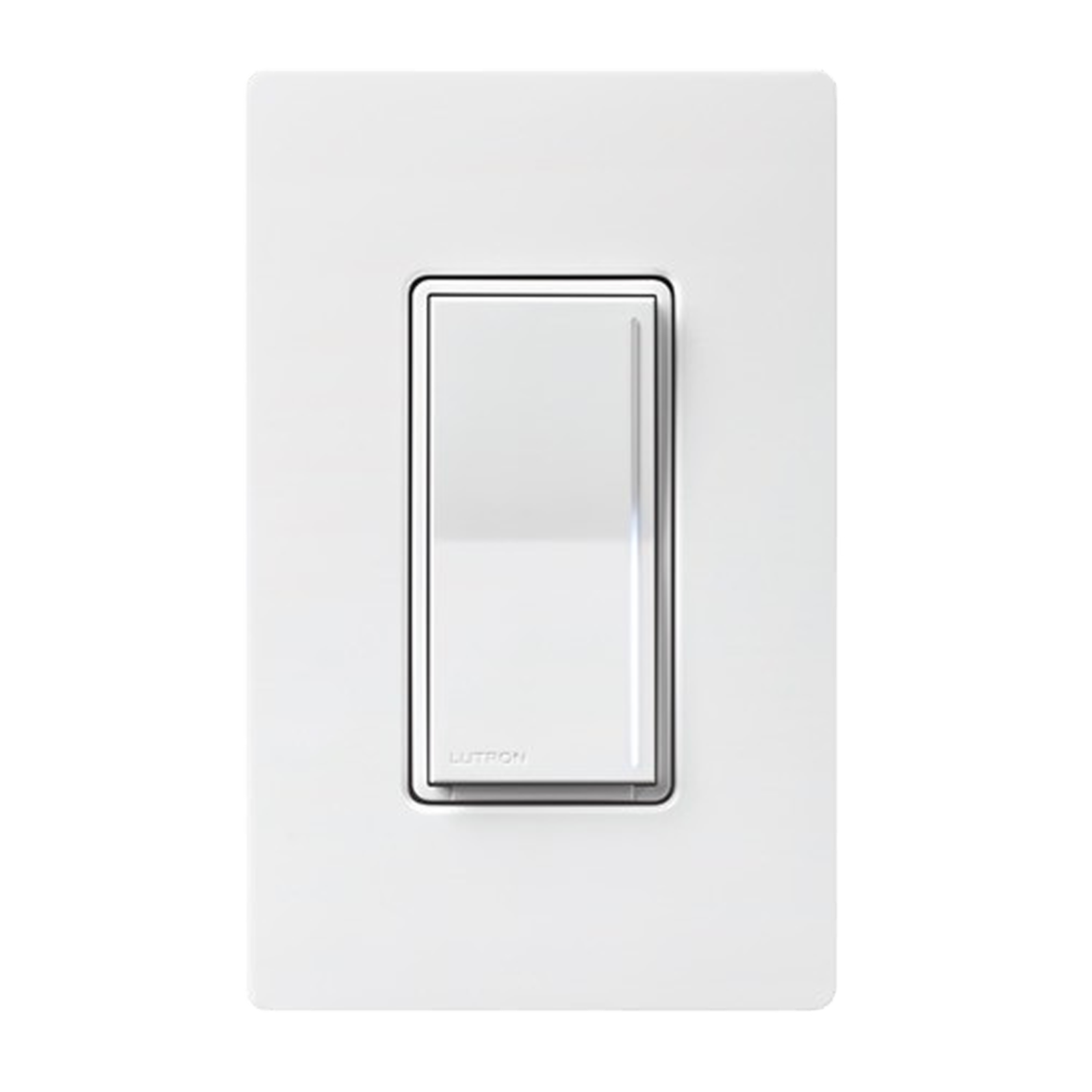

The Sunnata suite of controls—dimmers, switches, fan controls & keypads—delivers next-gen performance in a modern, touch-sensitive style.

Sivoia QS puts total light control at your fingertips. Seamlessly integrate natural and electric light in one dynamic solution that is simple to install and control. Sivoia QS can control Lutron's complete portfolio of window treatments: roller shades, cable-guided shades, roman shades, drapery, horizontal sheer blinds, tension shades, and more all in a variety of fabrics. To customize further, choose between recessed, pocket, and fascia mount options with coupled and dual shade solutions available.

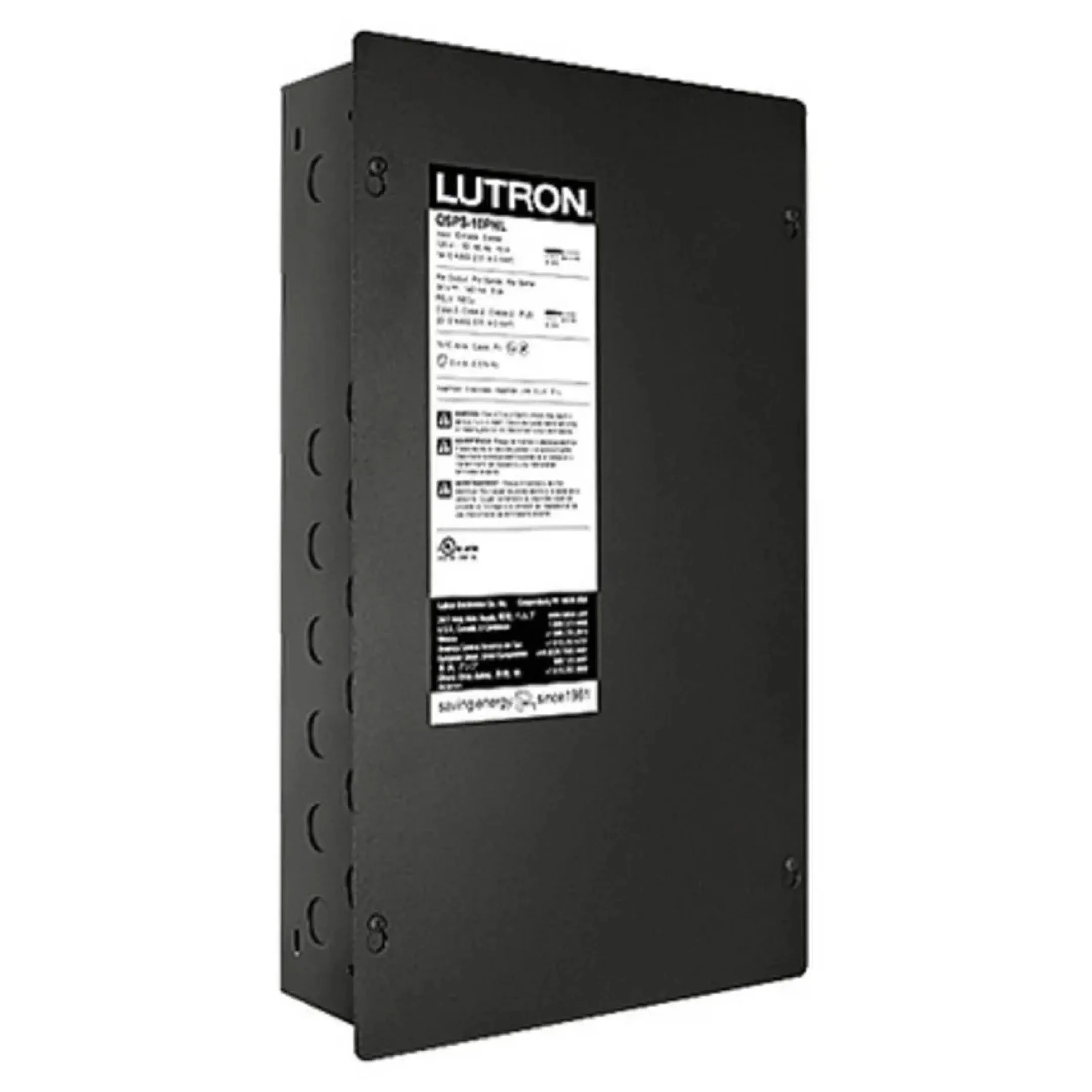

The Sivoia QS Smart Panel simplifies wiring and organizes installations with multiple Sivoia QS window treatments and other system devices and interfaces.

The Sivoia QS Smart Panel is designed to be hardwired into a standard 120 - 240 V~ circuit. Each panel contains ten NEC® Class 2 / PELV outputs that provide power and communication to connected devices.

Lutron Radio Powr Savr occupancy / vacancy sensors are wireless, battery-powered, passive infrared (PIR) sensors that automatically control lights via RF communication to compatible dimming and switching devices. These sensors detect the heat (IR radiation of 9.5 μm) from people moving within an area to determine when the space is occupied. The sensors then wirelessly transmit the appropriate commands to the associated dimming and switching devices to turn the lights on or off automatically. They combine both convenience and exceptional energy savings potential along with ease of installation.

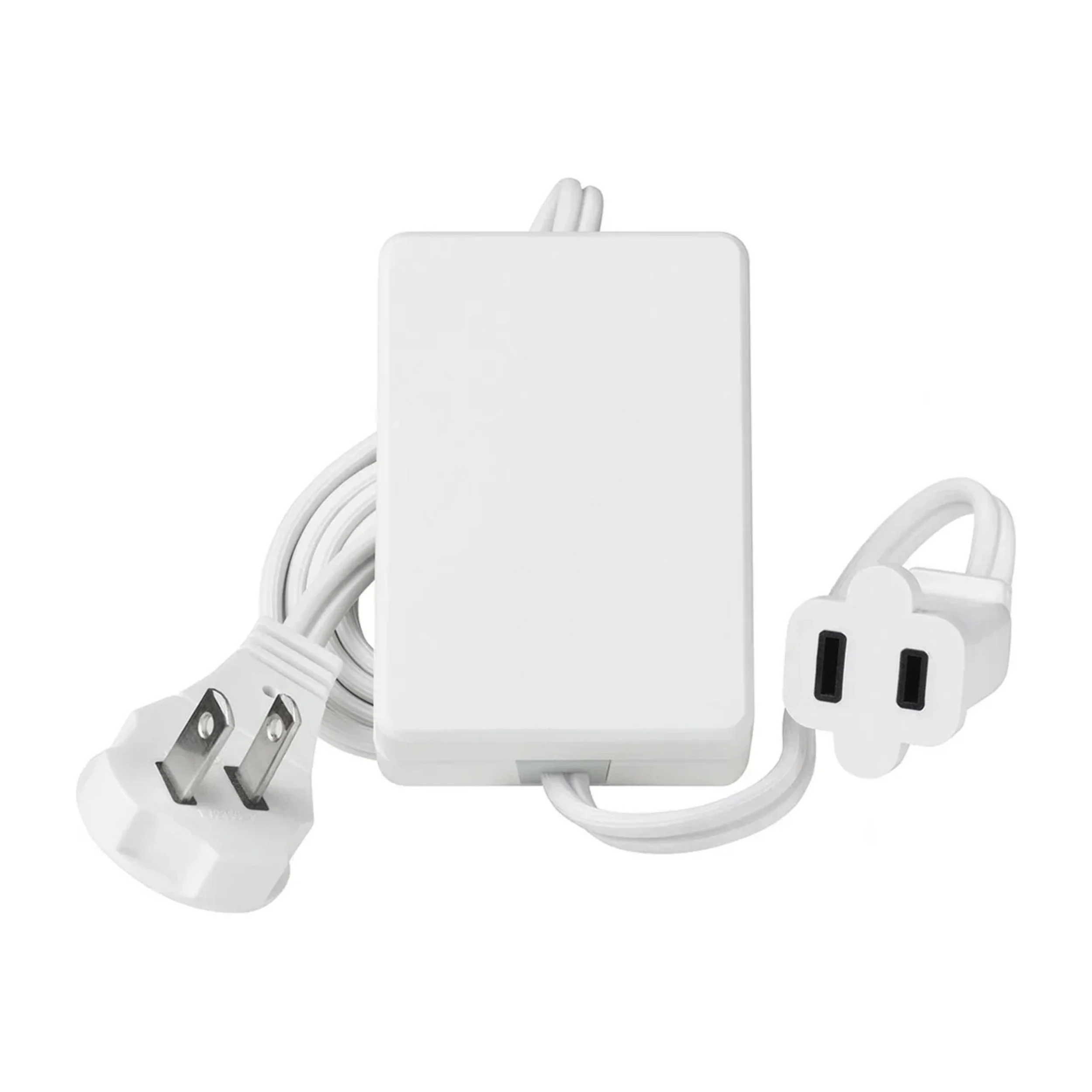

HomeWorks QS RF Plug-In Modules function much like standard lamp dimmers, but can be controlled as part of a lighting control system. RF Plug-In Modules are useful in locations where plug-in lamps need to be dimmed or non-dimmable loads need to be switched. RF Plug- In Modules can be hidden discretely behind furniture.

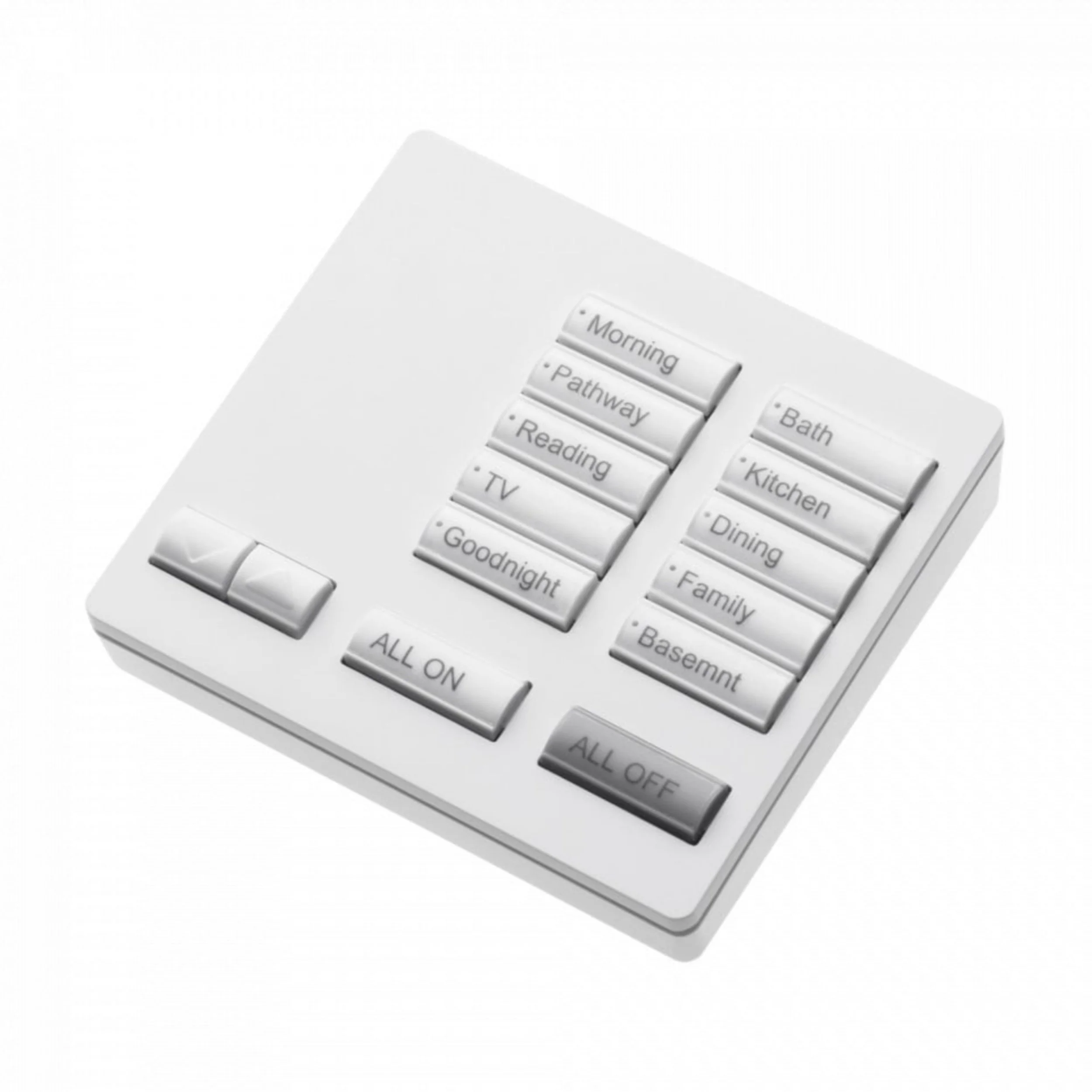

HomeWorks QS RF seeTouch Tabletop Keypads provide homeowners with a simple and elegant way to operate lights, shades/draperies, motorized screens, thermostats, and many other devices.

HomeWorks QS RF seeTouch Tabletop Keypads feature large, easy-to-use buttons, plus a unique backlit engraving option that makes the keypads readable any time of the day or night. The keypad buttons are rounded, making them easier to read.

The versatile design of HomeWorks QS RF seeTouch Tabletop Keypads allows them to be mounted on a wall, placed on top of a table, or used as a cordless keypad. The keypads can be powered by a DC adapter or with 2 AAA batteries. Battery powered Tabletop Keypads will shut off after a short period of inactivity in order to conserve battery power.

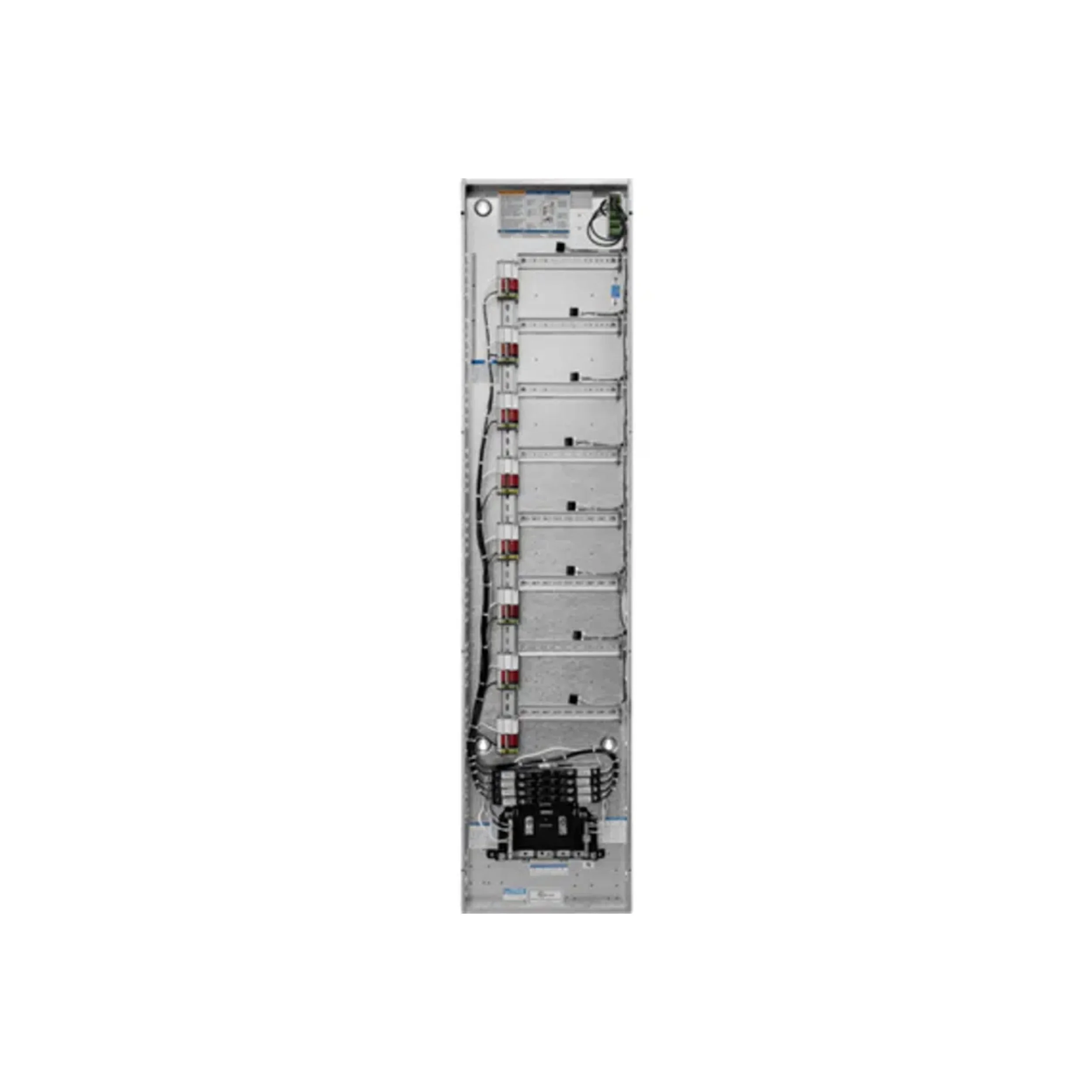

The Lutron DIN rail panels with integrated arc-fault circuit breakers are designed to accept Lutron DIN power modules (DPMs). The compatible DPMs can be configured in the panel to control multiple load types to fit the size, lighting plan, and design of a project. DIN panels with breakers reduce the number of wiring connections required when compared to a similar feed through panel. Panels may either be surface-mounted or recess-mounted in an electrical closet or other equipment room.

The Lutron family of DIN rail panels are designed to accept the Lutron DIN power modules (DPMs). The DPMs can be configured in the panel to control multiple load types that fit the size, lighting plan and design of a home. The control panels have a control gear compartment that can house up to 2 processors, DMX and / or IO interfaces, 2 Wire Landing Boards (WLB), and 1 power supply. The satellite panels replace the control gear compartment with a mounting bracket to add an additional DPM. Panels may be either surface-mounted or recess-mounted in an electrical closet or other equipment room. There are feed-through, MCB and RCBO options available for each panel size and type. For each DPM type, there is a terminal kit available as well as a wiring harness. There is also a QS harness for wiring from DPM to DPM. Other options include blanking plates for unused module positions and a reversible hinged door.

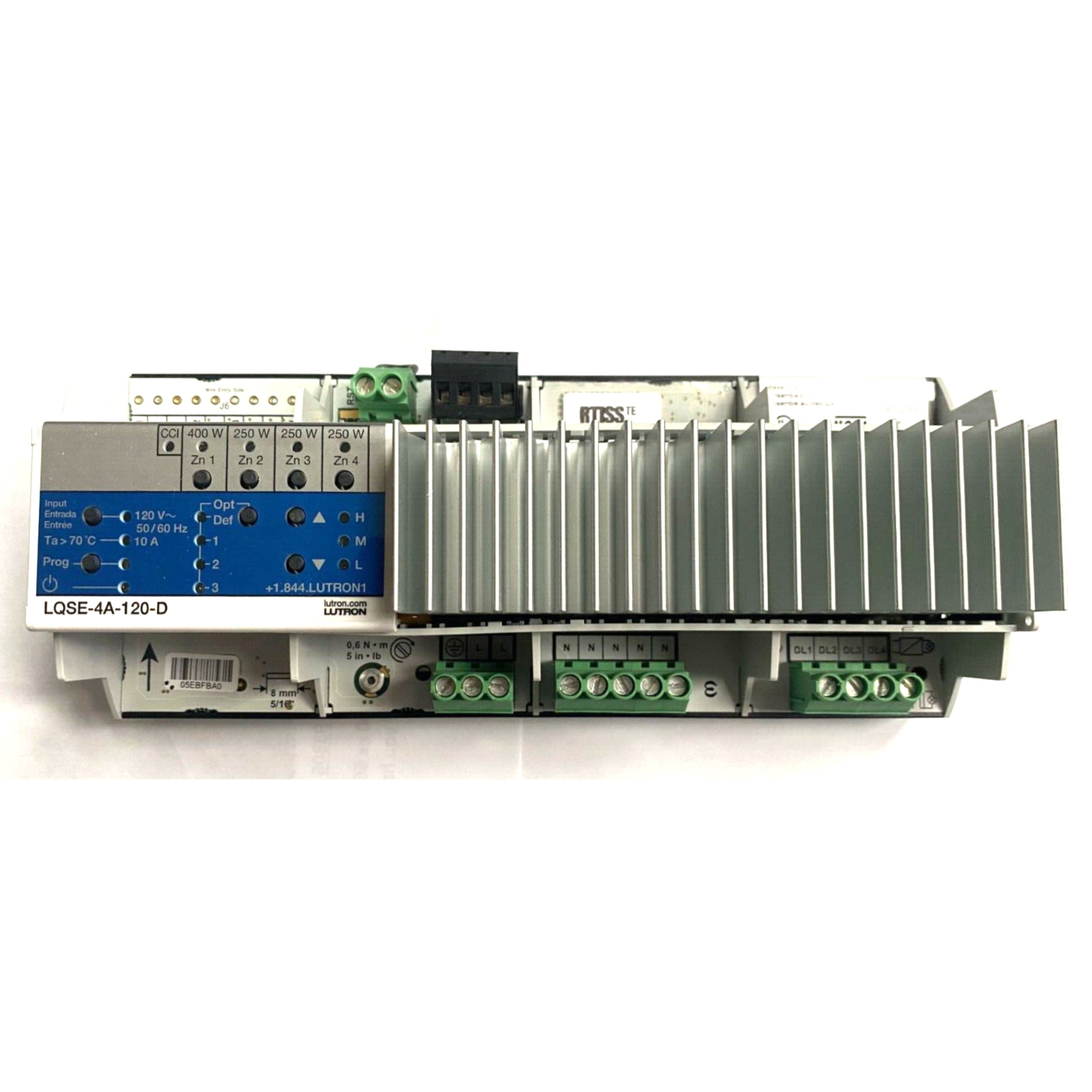

The DIN Power Module (DPM) family is a group of modular products for the control of lighting loads and motor loads.

The DIN Power Module (DPM) family is a group of modular products for the control of lighting loads. This product is compatible with Lutron HomeWorks QS systems.

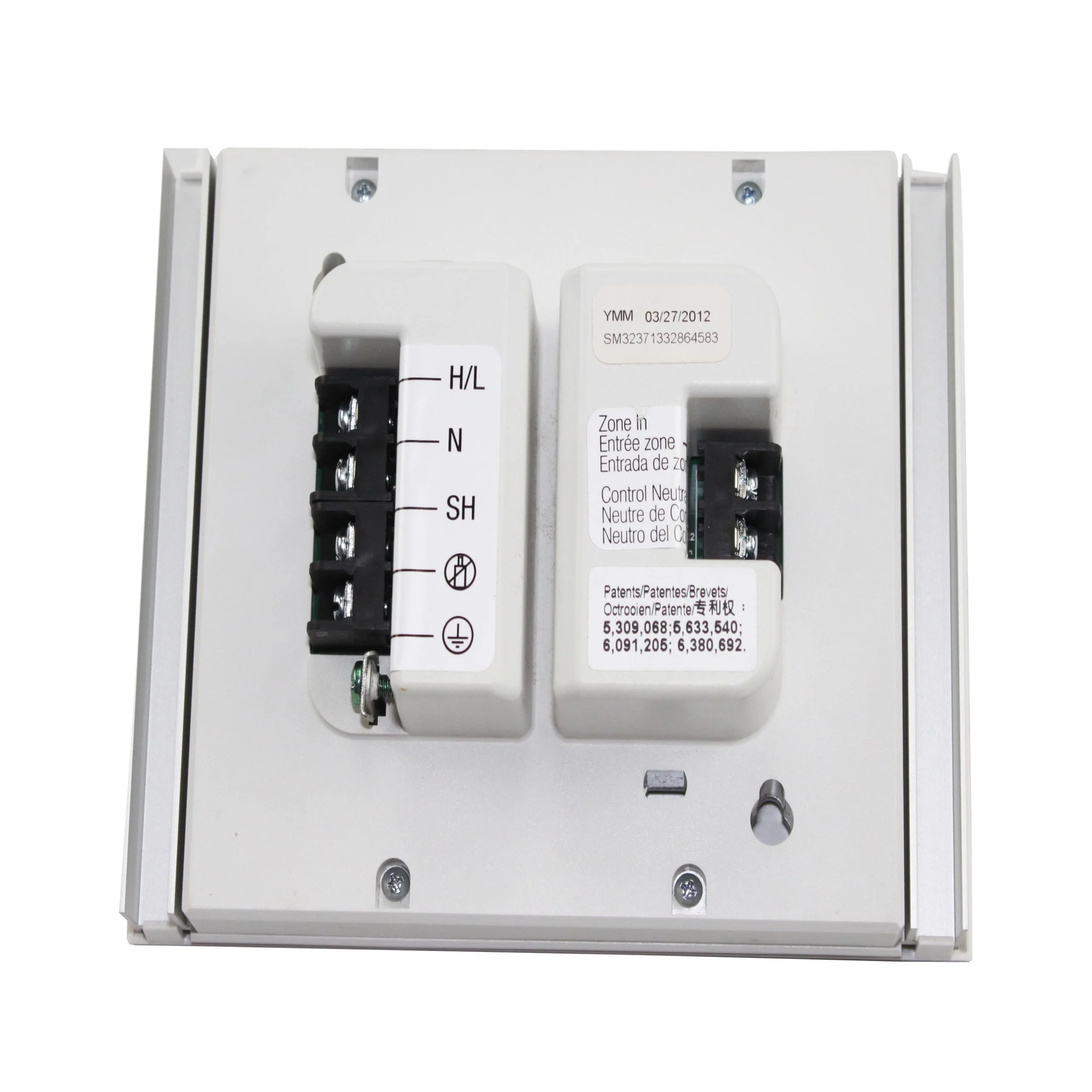

• Provides capability for a zone on a GRAFIK Eye control unit (or other product) to switch a fully loaded circuit of lighting.

• May be used to switch incandescent, electronic low-voltage, magnetic low-voltage, HID, fluorescent ballasts, and neon / cold cathode lighting sources.

• Utilizes Softswitch arcless switching technology.

• Provides power and switching for one zone.

• Up to 3 power modules may be wired on a single GRAFIK Eye zone.

• Model available for 120 V~ control power.

• Model available for 120 –277 V~ load power.

• Provides dimming control for 1 zone of a full 16 A lighting load.

• May be used to dim incandescent, halogen, electronic low-voltage, magnetic low-voltage, neon / cold cathode.

• Phase-adaptive technology automatically selects leading-edge or trailing-edge dimming for low-voltage transformers.

• Up to 3 power modules may be controlled by a single dimmer (C5-BMJ- will control only 1 module).

Low-voltage enclosures may be either surface-mounted or flush-mounted in an electrical closet or equipment room. Both the number of enclosures and the types of components within them are customized to fit the size, lighting plan, and design of a home. Low-voltage enclosures can be distributed throughout the home near the rooms they are controlling, to provide maximum flexibility during installation of the low-voltage wiring.

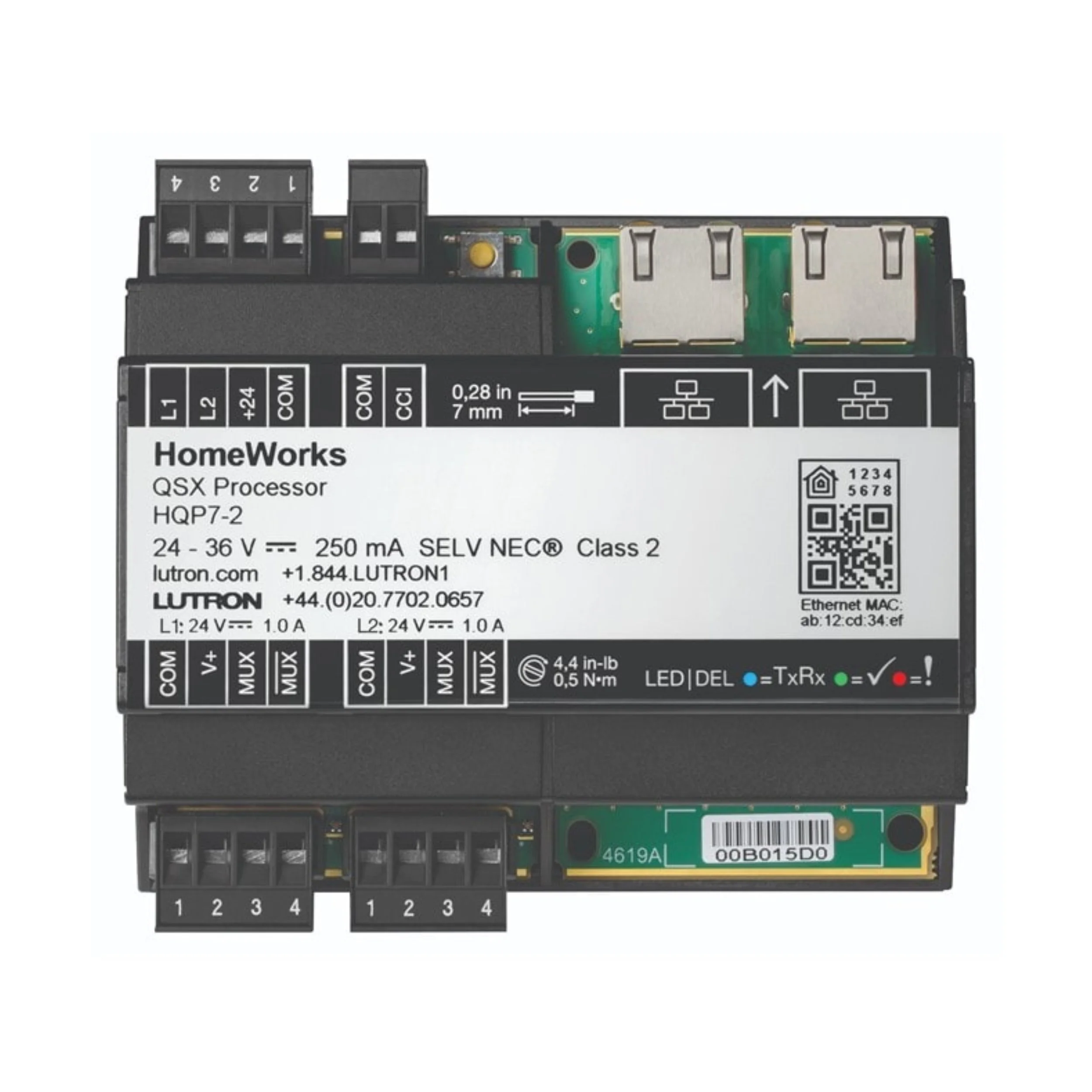

The HomeWorks QSX processor 1 provides control and communication to HomeWorks system components. The Ethernet links allow communication to the HomeWorks designer software, integration with third-party systems and communication between multiple processors. HomeWorks QSX processors may be connected using either an Ethernet hub / switch or router, or by using Ethernet directly from a PC to the processor(s). Clear Connect - Type X Gateways cannot be wired directly to the Ethernet port on a HomeWorks QSX processor. See page 5 for details. All processors on a project must be connected to a single network. The HomeWorks designer software and all integration equipment must be connected to the same network as the processors. The HomeWorks QSX processor is required when using the Clear Connect - Type X Gateway for control of residential Ketra light sources.

HomeWorks wireless processors can communicate with up to 100 Clear Connect – Type X devices, 95 Clear Connect – Type A devices, and 4 Type A repeaters per processor.

• 5-Channel, continuous, flicker-free dimming from 100% down to 0.1% of measured light output 1

• 96 W rated LED load (up to 32.8 ft [10 m] of 5-channel LED tape)

• 50,000 hours rated lifetime

• Uses Clear Connect–Type X wireless communication

• Compact, easy to hide

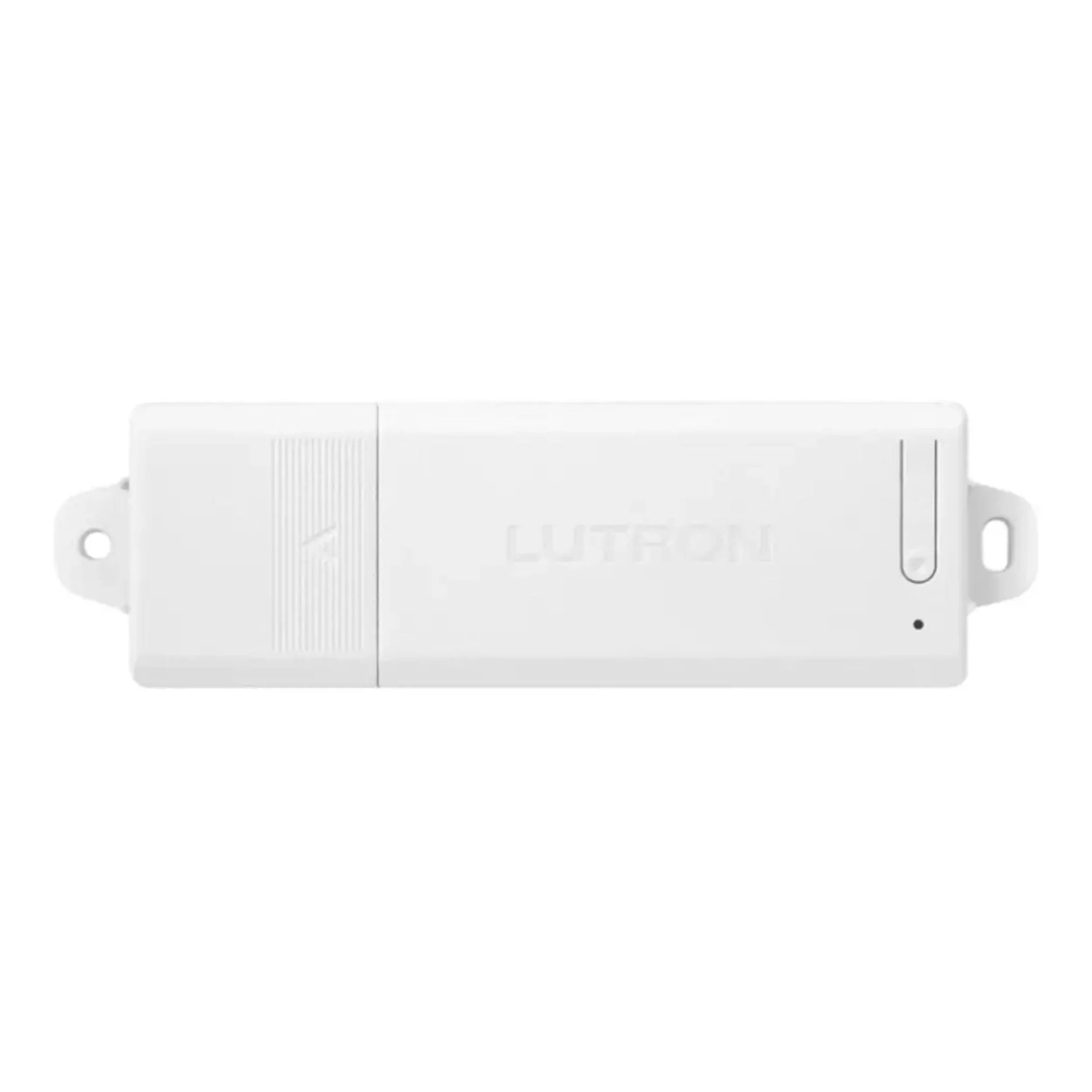

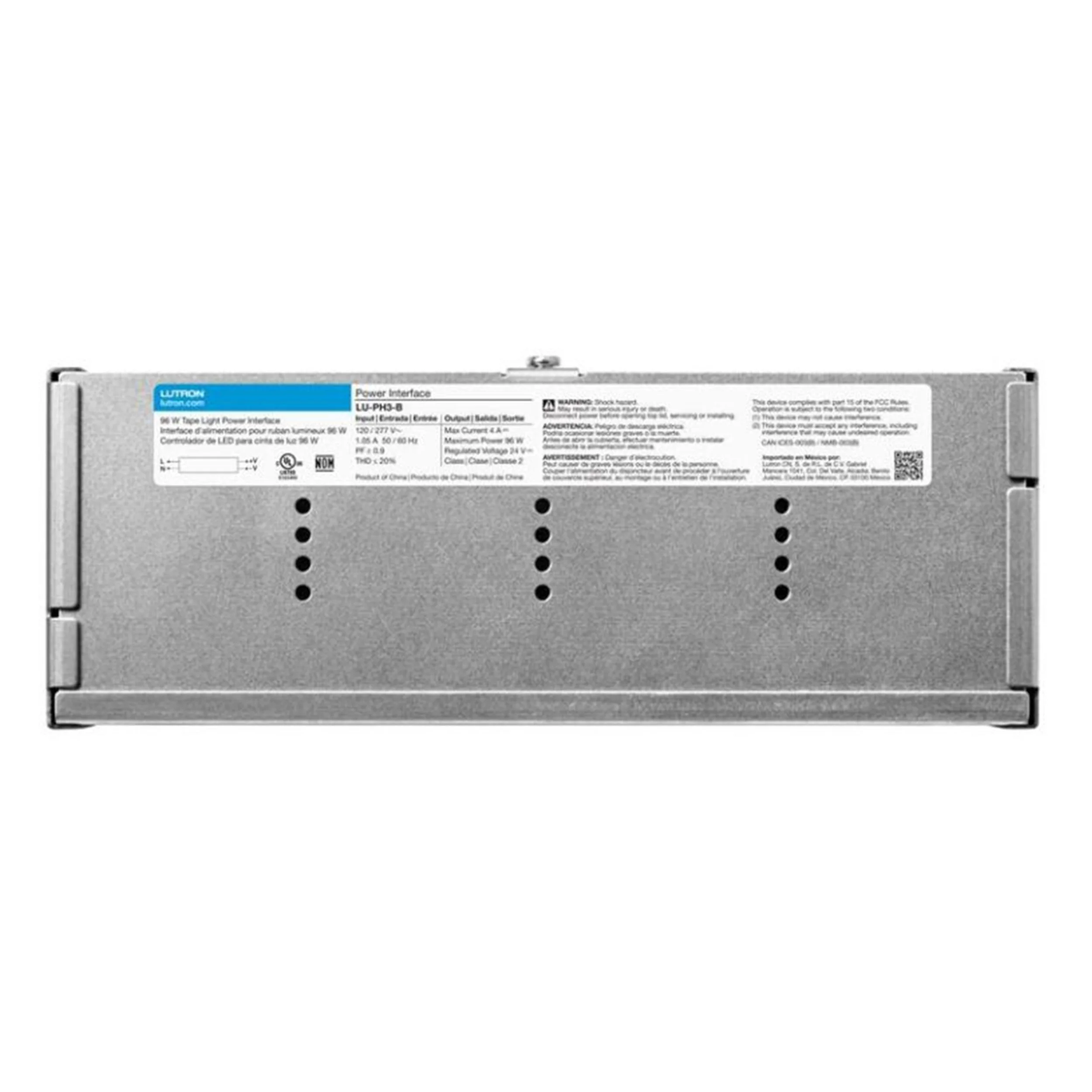

Compact form-factor with flying leads for wiring. Compatible with Multi-channel wireless controller only.

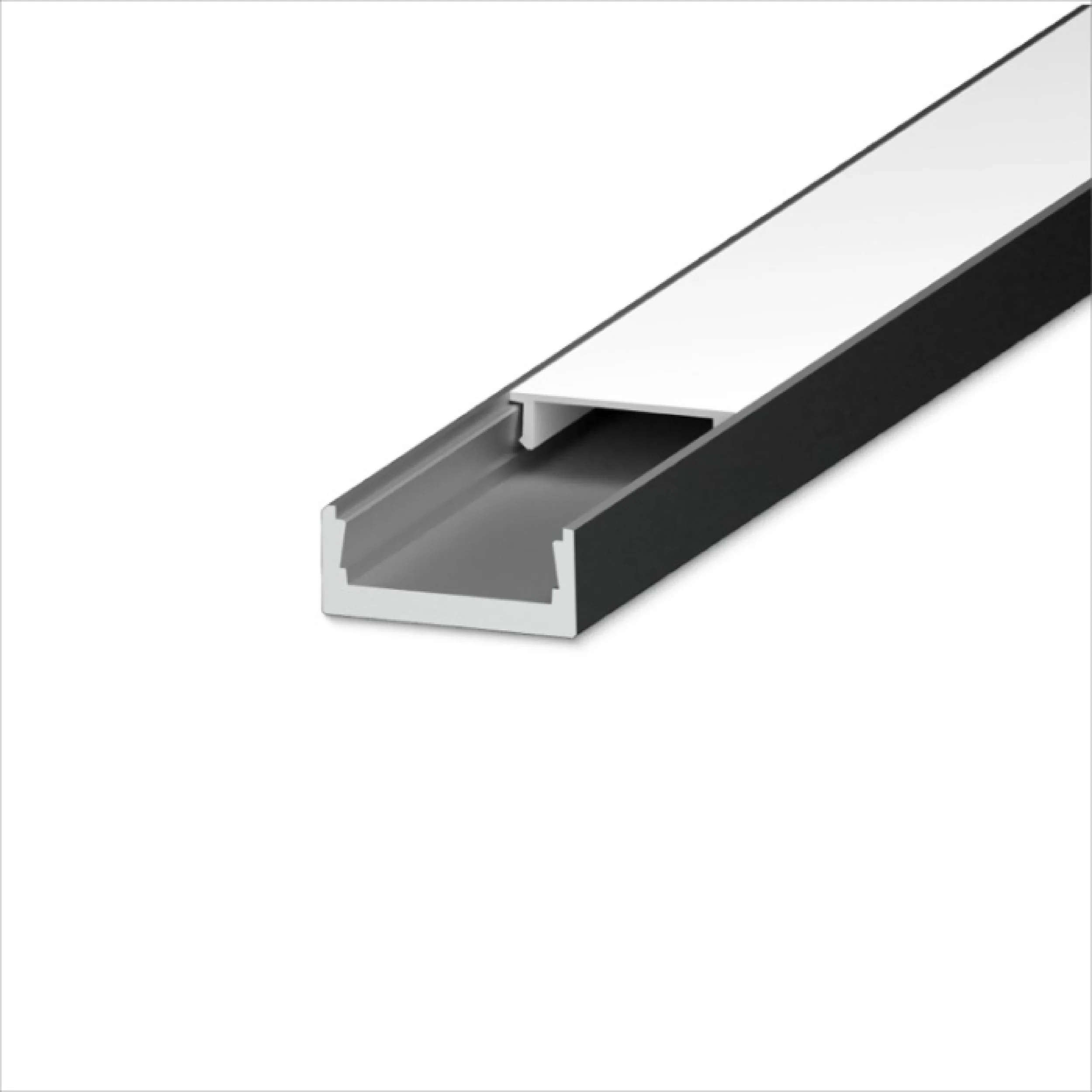

LED tape extrusions (also called channels) provide a professional and durable means of installing LED tape light in a protected and thermally conductive rigid aluminum housing. The paired diffusing lens makes diodes less visible and provides for a more pleasant visual experience.

LED tape extrusions (also called channels) provide a professional and durable means of installing LED tape light in a protected and thermally conductive rigid aluminum housing. The paired diffusing lens makes diodes less visible and provides for a more pleasant visual experience.

LED tape extrusions (also called channels) provide a professional and durable means of installing LED tape light in a protected and thermally conductive rigid aluminum housing. The paired diffusing lens makes diodes less visible and provides for a more pleasant visual experience.
