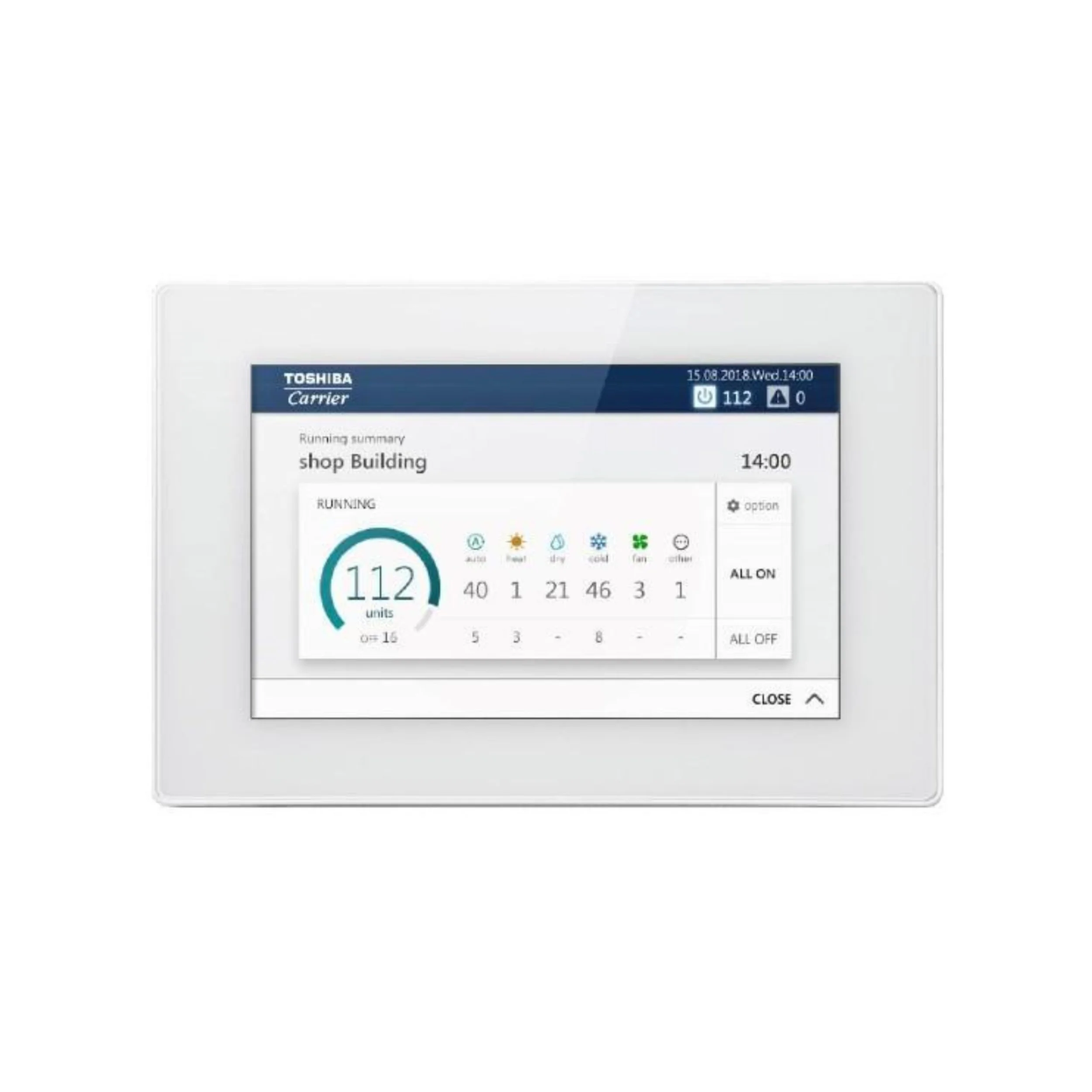

u-Series Touch Screen Central Controller
The Touch Screen Central Controller is a line voltage controller mounted on the wall with a touch screen LCD display panel. This controller enables the customer to control and monitor the operation of the VRF System.
-

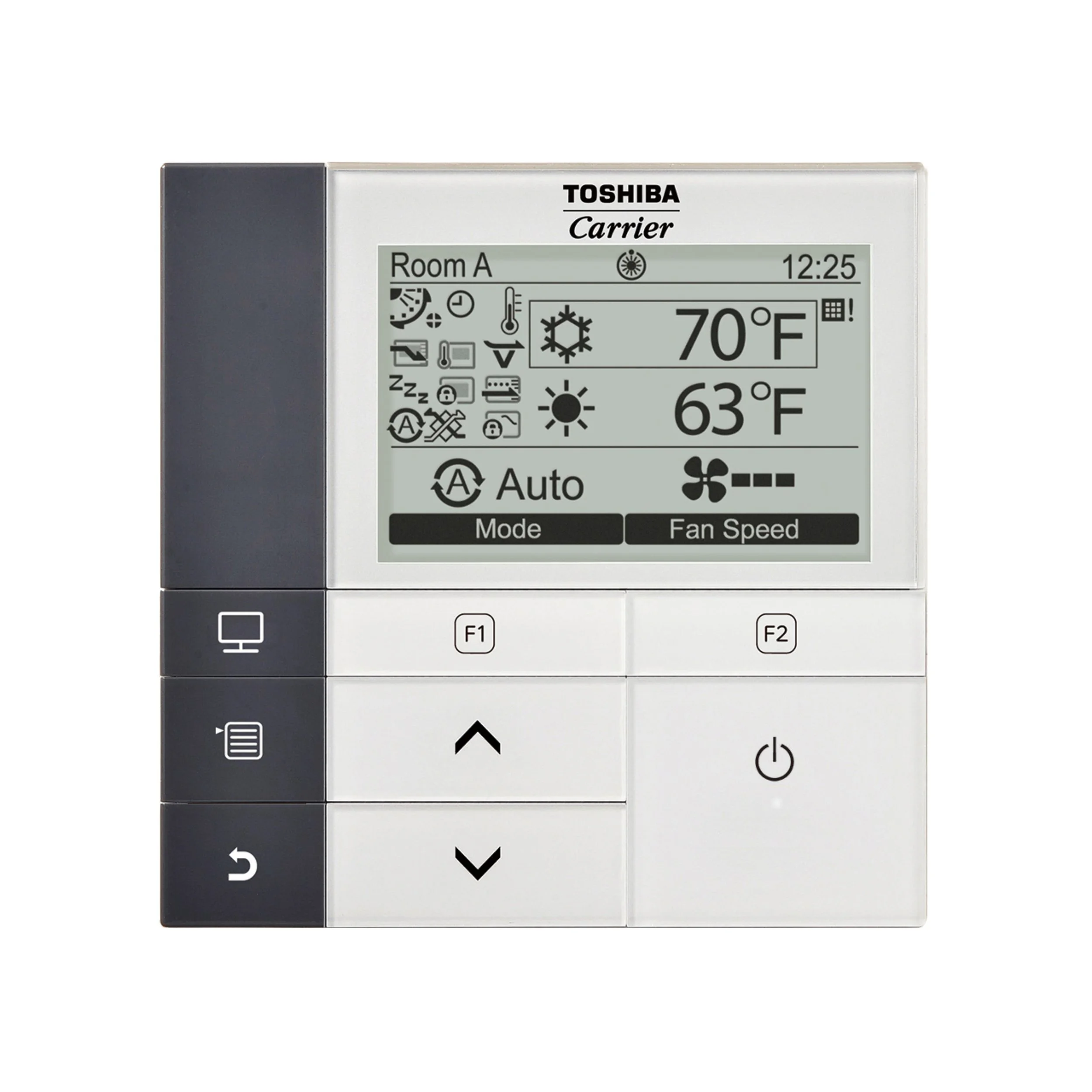

Wired Programmable Remote Controller
The wired remote controller (programmable) is a low voltage thermostat mounted on the wall that maintains room temperature by controlling system operation.
-

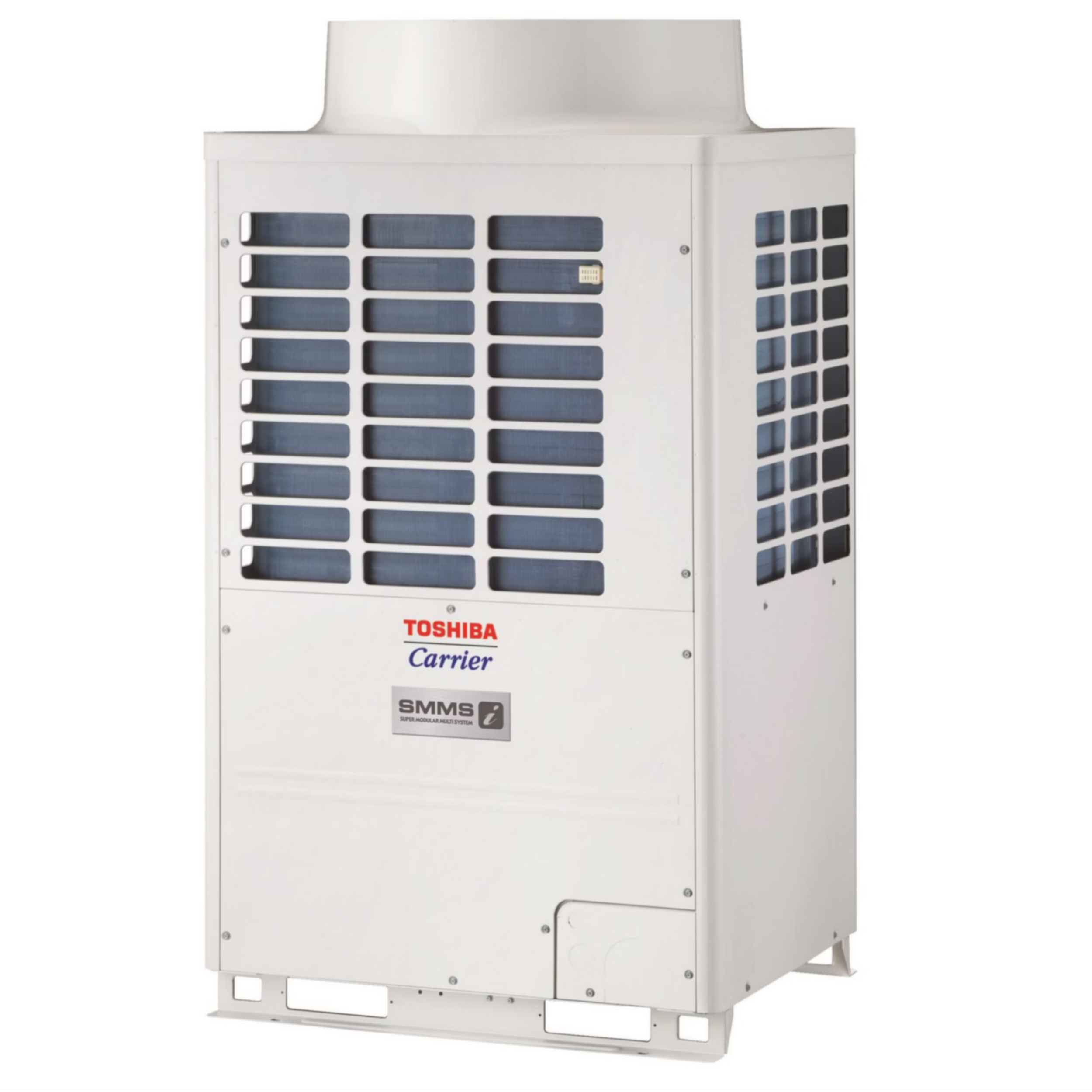

1-Phase Heat Recovery (SHRM) Series Outdoor Unit
SHRMe VRF Heat Recovery Features
6-ton single-phase modules available
Capable of simultaneous cooling and heating (flow selector boxes required)
Modules have 2 inverter-driven twin rotary compressors
Backup capability due to multiple compressors
Compressor speed varied in 0.1 Hz increments for comfort and efficiency
Direct drive, inverter-driven 64-step outdoor motor
2 modules can be combined to form 12-ton single-phase system
Up to 3281 ft (1000 m) actual total system piping (liquid line)
Up to 591 ft (180 m) actual piping length from outdoor unit to furthest fan coil
Up to 330 ft (100 m) outdoor control wiring
Up to 6560 ft (2000 m) control wiring between outdoor and indoor units
Operating temperature range Cooling (db): 14 to 122 F (-10 to 50 C) Heating (wb): -13 to 60 F (-25 to 15.6 C)
Protection: high pressure switch, low pressure sensor and switch, PC board fuse, invert
-

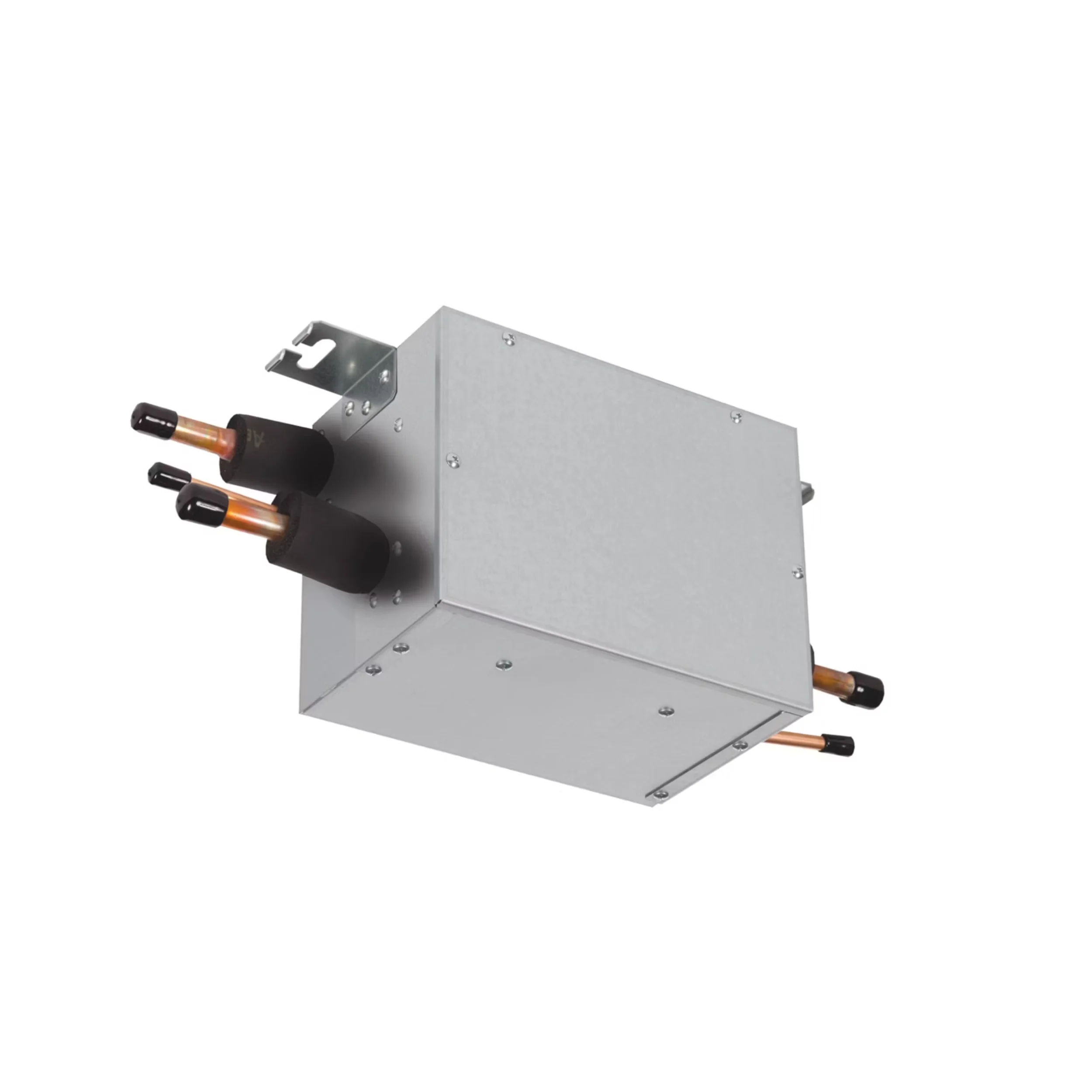

1 Port Flow Selector Unit, For Up to 36,000 BTUH Units
VRF Flow Selector Unit Features
Can be installed 49 ft. (15m) away from indoor unit.
Flow selector box wired from indoor unit
16.4 ft. (5m) control and power wire harness supplied with box
RBC-CBK15FUL accessory is required to exend the distance from indoor unit up to 49 ft. (15m).
Multiple indoor units can be connected to one box
-
1 Port Flow Selector Unit, For 36,000 to 61,000 BTUH Units
VRF Flow Selector Unit Features
Can be installed 49 ft. (15m) away from indoor unit.
Flow selector box wired from indoor unit
16.4 ft. (5m) control and power wire harness supplied with box
RBC-CBK15FUL accessory is required to exend the distance from indoor unit up to 49 ft. (15m).
Multiple indoor units can be connected to one box
-
Ductless Variable Refrigerant Flow (VRF) 15,000 BTUH Indoor Concealed Duct Unit
SMMSu / SHRMu CONCEALED DUCT FEATURES
R-410A Refrigerant
Twelve sizes from 7,500 to 54,000 Btu/h
Standard condensate pump with 24.3 in. lift capability
Quiet operation, as low as 30 dBA
Rear return configurable for bottom return
Auto or manually set three fan speeds
Five-year parts limited warranty
-
Ductless Variable Flow (VRF) 24000 BTU Indoor Vertical Air Handler Unit
STANDARD FEATURES
Dual Drainage Spouts
Three Fan Speeds - High, Medium and Low
Unit Can Be Installed Standing Vertical or Laid Horizontally
Electronically Commutated Fan Motor (ECM)
Built In Pulse Modulating Valve For Installation Ease
Removable Front Panel Provides Easy Access
Filter MERV 3
-
Ductless Variable Flow (VRF) 15000 Btu Indoor Compact 4-Way Cassette Unit
SMMSu / SHRMu VRF 4-Way Cassette Features
R-410A refrigerant
Eleven sizes from 7,500 to 54,000 Btu/h
Optional fresh air intake
Quiet operation (as low as 29 dBA)
Standard condensate pump with 26 in. lift capacity
Independent louver control (fixed or swing)
Optional wired or wireless controls
Auto or manually set three fan speeds
Easy to remove cleanable filter
Five-year parts limited warranty
-

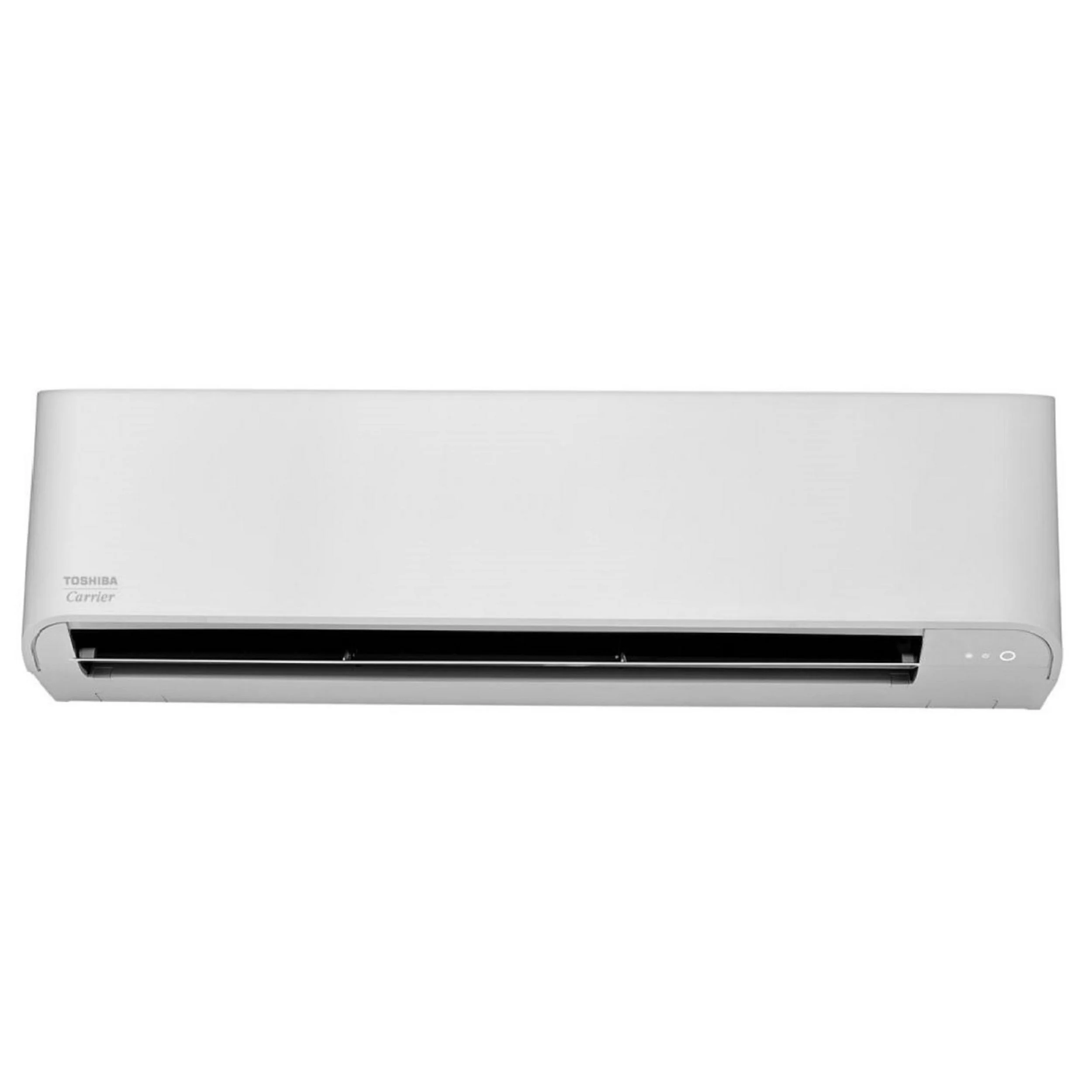

Ductless Variable Refrigerant Flow (VRF) 12,000 BTU Indoor Hall Wall Unit
SMMSu / SHRMu VRF High Wall Features
R-410A refrigerant
Eight sizes from 7,500 to 36,000 Btu/h
Quiet operation, as low as 27 dBA
Vertical airflow can be set to swing or fixed position
Air throw up to 23 feet • Auto or manually set three fan speeds
Easy to remove cleanable filter
Five-year parts limited warranty
-
Ductless Variable Flow (VRF) 7500 BTU Indoor Concealed Duct Unit
SMMSu / SHRMu CONCEALED DUCT FEATURES
R-410A Refrigerant
Twelve sizes from 7,500 to 54,000 Btu/h
Standard condensate pump with 24.3 in. lift capability
Quiet operation, as low as 30 dBA
Rear return configurable for bottom return
Auto or manually set three fan speeds
Five-year parts limited warranty
